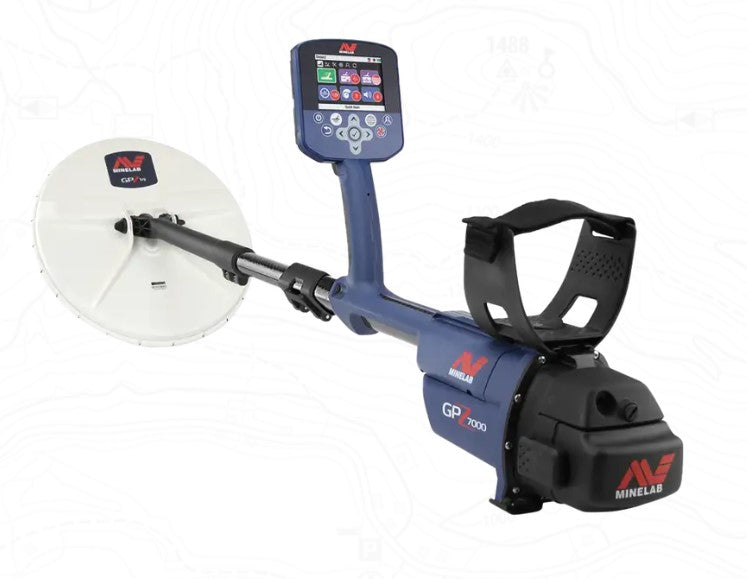

Minelab GPZ 7000 - Gold Machine

Deep Gold. Major Performance.

Extreme Gold Depth So how deep can you go? Well, up to 40%* deeper than the GPX series. Old gold fields are new again, thanks to the revolutionary new ZVT technology. Minelab takes you much deeper than ever before! Maximum Gold Sensitivity The incredible sensitivity of the GPZ 7000 with the Super‑D coil gives you the ultimate advantage in the field. Find gold others have missed, from sub-gram gold through to those elusive ‘retirement nuggets’ still out there. Precision Ground Balance Most gold is buried in the mineralized ‘difficult’ ground that many detectors can’t cope with. The GPZ 7000 accurately ‘balances’ and automatically ‘tracks’ to even the most severe ground conditions, with ease. Enhanced Noise Immunity The outstanding noise immunity of the GPZ 7000 enables very smooth and quiet detecting. With 256 Noise Cancel channels, the GPZ 7000 picks up less atmospheric noise. Listen to the gold, not the noise interference! * When compared to the average performance of the GPX 5000 in typical environments. Actual performance depends on prevailing conditions.

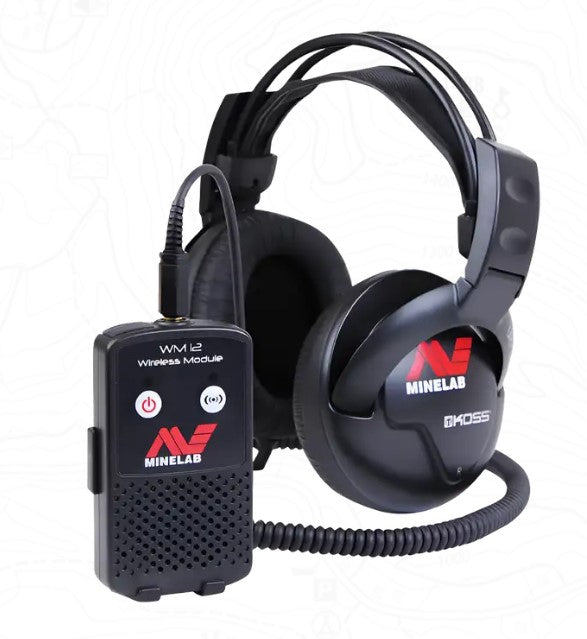

Wireless Audio Options

The GPZ 7000 delivers wireless audio through the included WM 12 module, giving you the flexibility to detect using the built-in speaker, supplied headphones or your own. Low-latency signal transmission ensures crisp, clear target audio in real time. With no cords restricting movement, it’s easier to change positions, cover more ground and stay focused throughout long sessions.

Integrated GPS & Mapping

Built-in GPS locating and PC mapping give you greater control and efficiency in the field. Log WayPoints, FindPoints and full GeoHunt paths as you detect, so you can track your route and pinpoint exactly where gold was found. Save and sync this data via Minelab’s XChange2® software to view your detecting history on Google Maps. This helps you revisit past productive areas, increase ground coverage and plan future hunts with precision.

Precision Ground Balance

Precision Ground Balance handles everything from normal to difficult and highly mineralised soils with accuracy and consistency. With both automatic and manual options available, it maintains stable operation as ground conditions shift. The Quick-Trak trigger lets you instantly rebalance without interrupting your search, ensuring peak performance in challenging environments. This system is essential for deep, stable detection and also supports expert-level tuning for those who want complete control.

Super‑D Coil Advantage

The Super‑D coil delivers increased sensitivity to both small and large gold targets, improving your chances of finding what others have missed. Its unique configuration provides better ground coverage, reduced noise, and sharper target signals, especially in highly mineralised conditions. Designed for clarity and consistency, it helps you pinpoint targets more accurately and detect across a wide range of soil types. Compatible with other GPZ coils, it’s a high-performance tool built for serious prospecting.

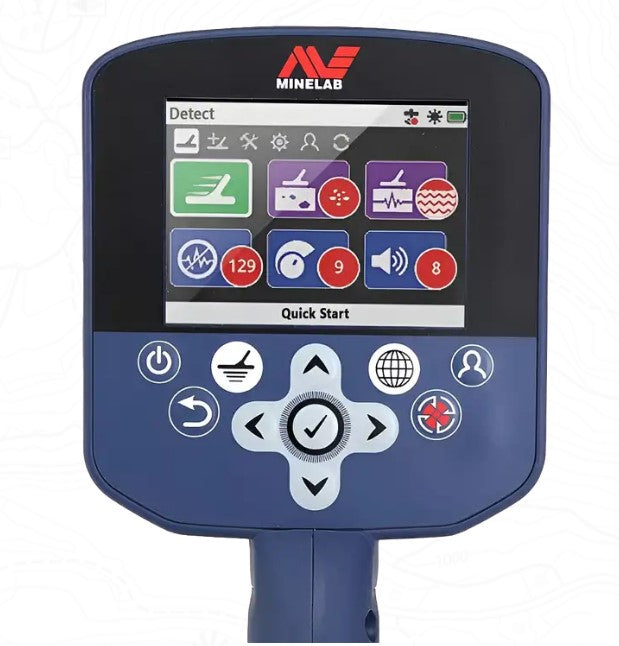

Detecting Functions Search Modes Gold Mode - High Yield, General, Extra Deep Ground Type - Normal, Difficult, Severe Noise Cancel Auto and Manual (256 channels) Sensitivity Level (1–20) Volume Range (1–20) Limit (1–20) Threshold Level Level (1–50) Pitch (1–100) Audio Smoothing Off, Low, High Ground Balance Auto and Manual (Quick‑Trak trigger button) Mapping Functions GPS Coordinates DMS (degrees, minutes, seconds), DM (degrees, minutes) Zoom Levels 10x10, 20x20, 100x100 (metres/yards per cell) GeoStore 100 FindPoints, 100 Waypoints, 10 GeoHunts GPS Engine u-blox Neo-7 (56 channels, SBAS: WAAS, EGNOS, MSAS) Physical Specifications Coil (GPZ 14) 14" x 13" Super‑D Configuration with skidplate (waterproof to 1 m/3 ft) Battery Li-Ion Rechargeable Pack (7.2V DC, 72Wh) Audio Output 6.3 mm (¼") non waterproof socket, Wi‑Stream wireless signal transmission Headphones KOSS UR 30 100 ohm with 6.3 mm plug (¼-inch) (non waterproof ) Wireless Audio WM 12 module (14 channels) Connect one or more WM 12 modules Display Full colour LCD (320 x 240 pixels) Detector Weight 3.32 kg (7.32 lb) (Including GPZ 14 coil, skidplate and 72Wh battery) Detector Length Collapsed: 1170 mm (46.1”) Laid flat, packed position: 1304 mm (51.3”) Extended: 1526 mm (60.1”) Laid flat, packed position: 1651 mm (65.0”) Harness PRO‑SWING 45 with additional J‑strut, cross piece and GA 10 Guide Arm Other Key Technologies ZVT, Super-D, GPSi, Wi-Stream, W8 PC Connection USB interface for XChange 2 PC software XChange 2 Software supplied on CD (Windows XP, Vista, 7, 8 compatible) Software Updates GPZ 7000 and WM 12 upgradeable via XChange 2 (with internet connection) Detector Menu Page Navigation (6 Detect pages, 5 Map pages) with built-in Guide Sequences
