Made to order, lead time is 1-2 weeks depending on quantity ordered.

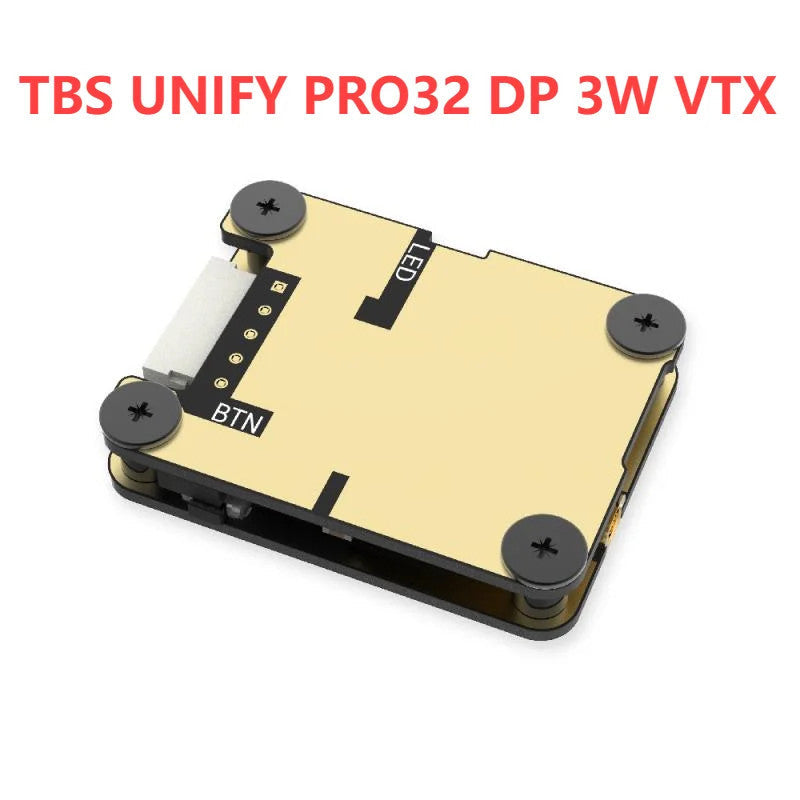

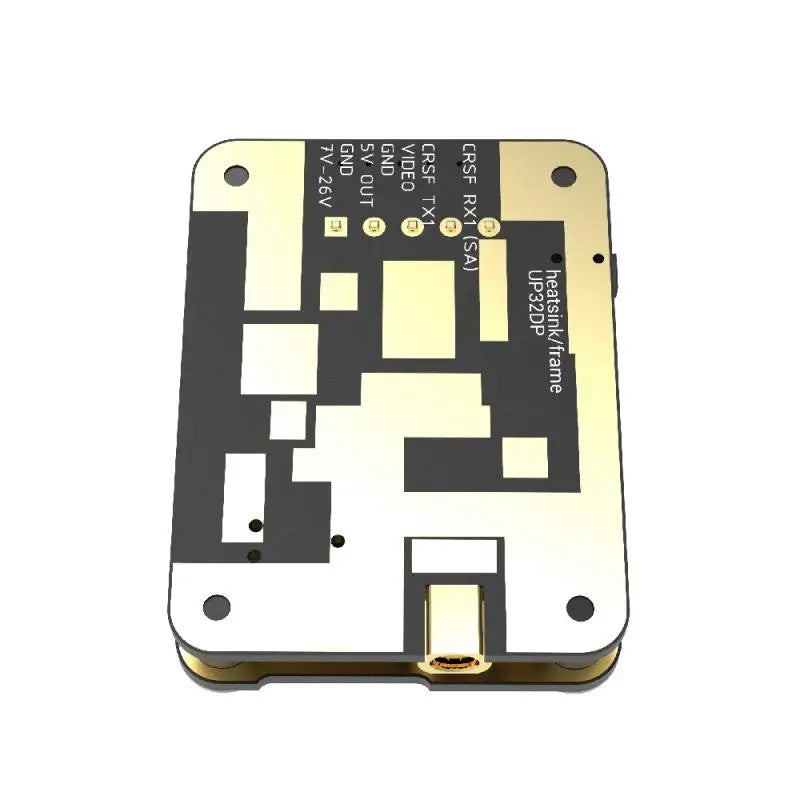

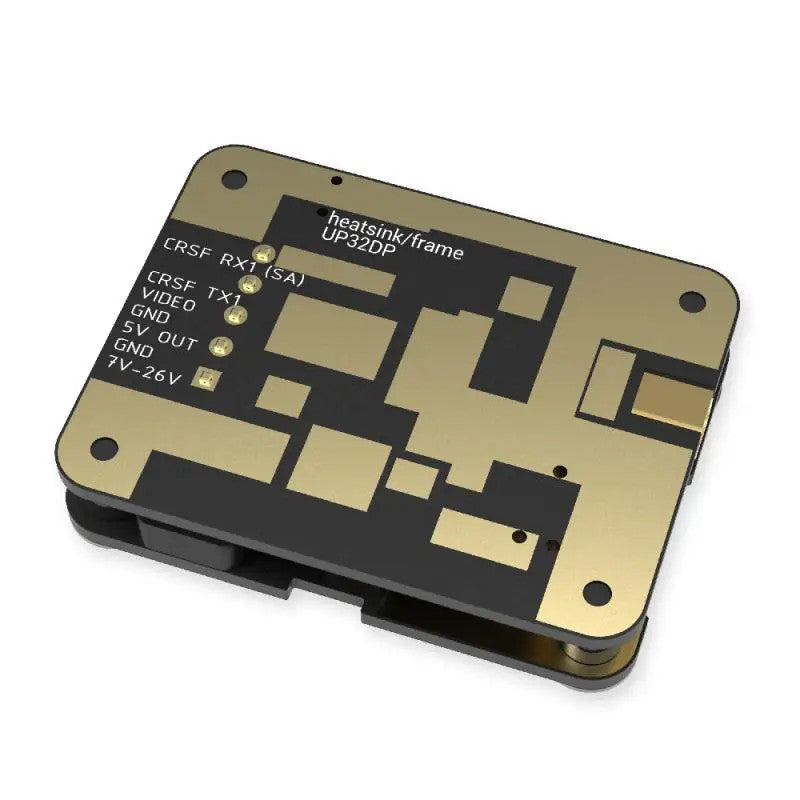

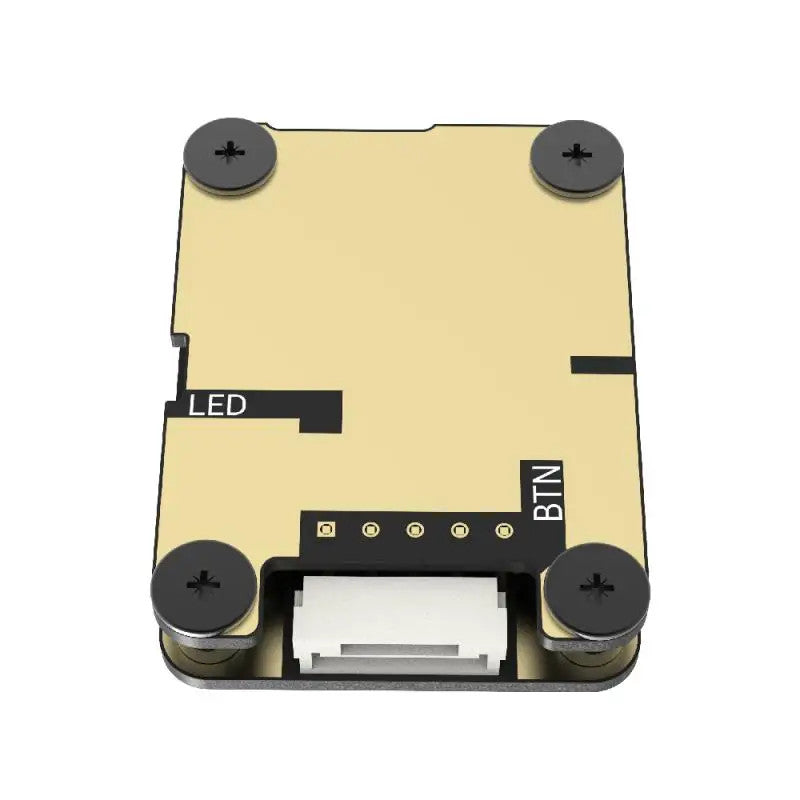

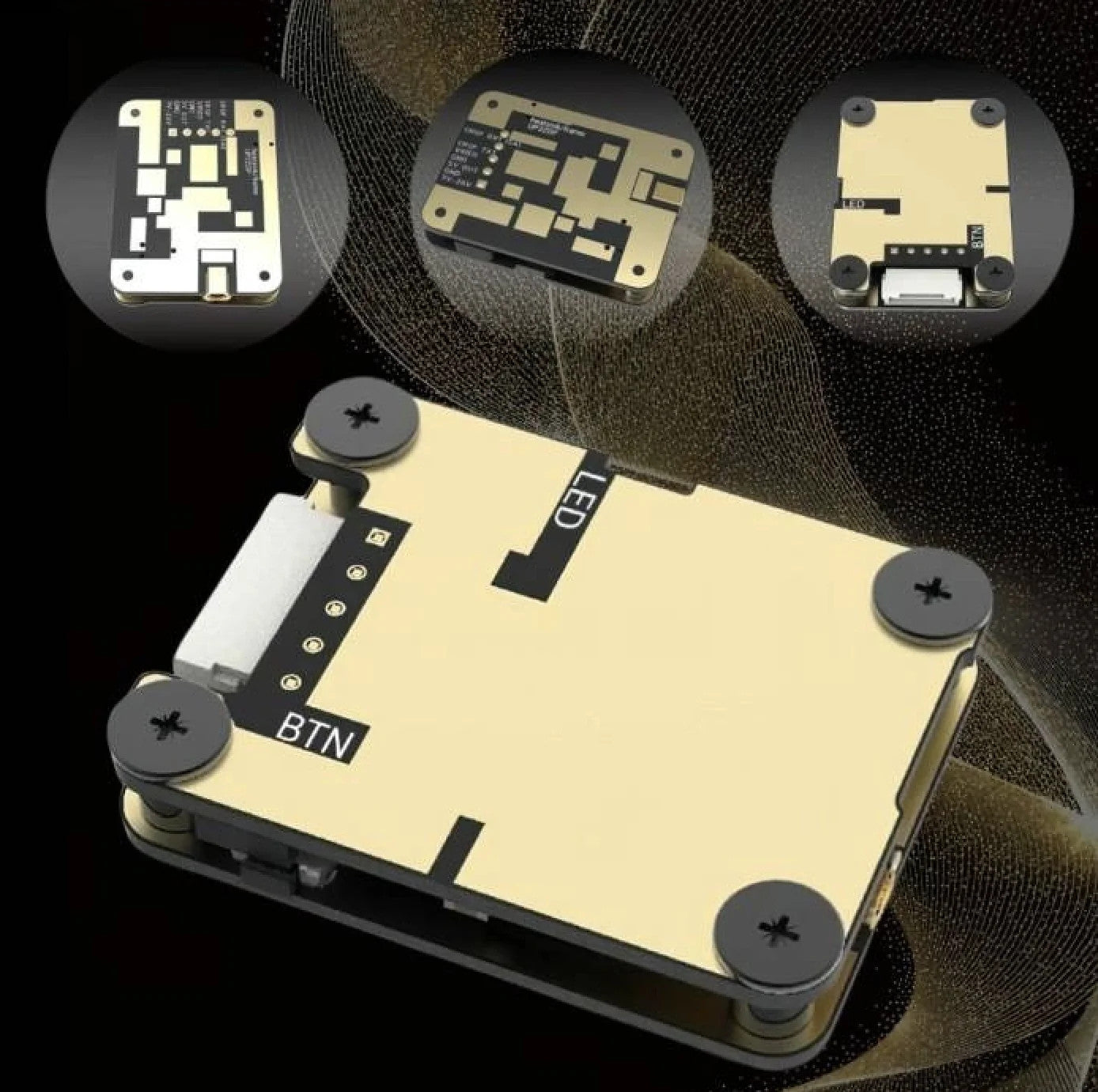

The TBS UNIFY PRO32 DP (MMCX), is a high-quality video transmitter (VTx) designed for use in fpv drones. It comes with several features like improved robustness, decreased size and power consumption. Enhanced performance and durability through advanced heat dissipation which requires no additional heatsink or fan.
Highlights:
- World’s lightest 3 Watt video transmitter
- Frequency range: 4990 MHz - 6030 MHz
- OSD configuration using TBS Smart Audio 2.1 (via Betaflight, TBS Crossfire / Tracer or Ardupilot)
- One button frequency and power setup
- LUA support for CRSF users
- MMCX connector
- 2-6S input
- Double noise filtering (>63dB SNR)
- Optimized heat dissipation, no heatsink required
- Optional matching circular polarized antenna available
Specifications:
-
Video System: Analog
-
Min Input Voltage: 6V
-
Max Input Voltage: 25V
-
Min Frequency Band: 4990MHz
-
Max Frequency Band: 6030MHz
-
Output Power : 10 / 25 / 100 / 200 / 400 / 500 / 999 / MAX mW
- Video Format: NTSC, PAL
- Video Input Impedance: 75Ohm
-
Audio: No
-
Pit Mode: Yes
- SmartAudio: Yes
-
OSD Support: Yes
-
Antenna Connector: MMCX
- Size: 37 x 28 x 10mm
-
Weight: 8.7g
Included
1x TBS UNIFY PRO32 DP 5G8 HV Video transmitter
1x Silicone cable (ends pre-tinned)
1x MMCX to SMA pigtail
1x Heat transfer tape for easy FPV drone mounting
IMPORTANT!
The Unify Pro32 DP is a high power video transmitter. Operating it with bad quality antennas, or without antennas on higher power levels will inevitably brick the unit - faster than you would expect. It is therefore important to use the wideband function only with wideband antennas on the highest power settings!
