NOTE:This is a special order item and is subject to manufacturer availability.
Please allow a minimum of 2 weeks for delivery.
No returns or cancellations allowed.
Specifications:

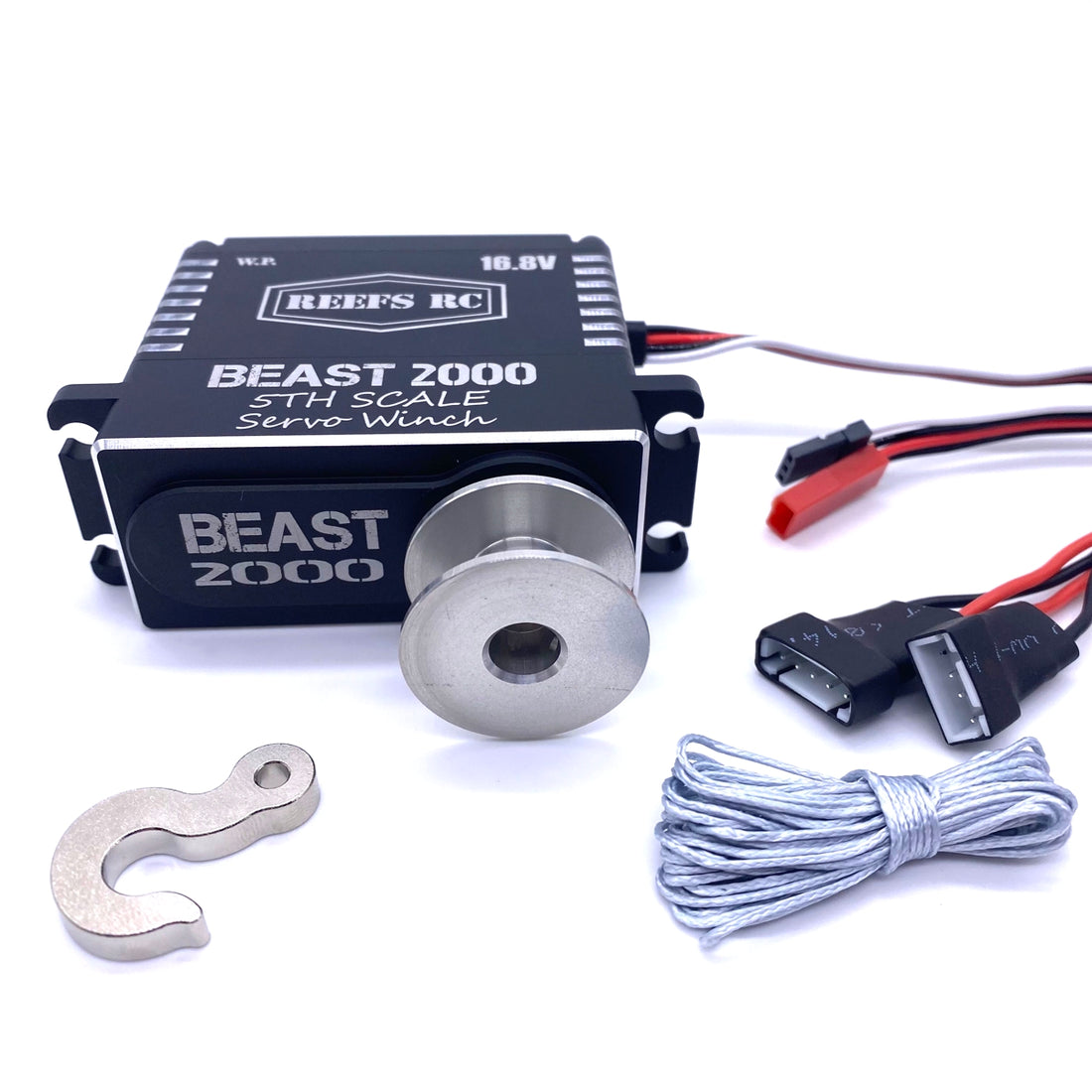

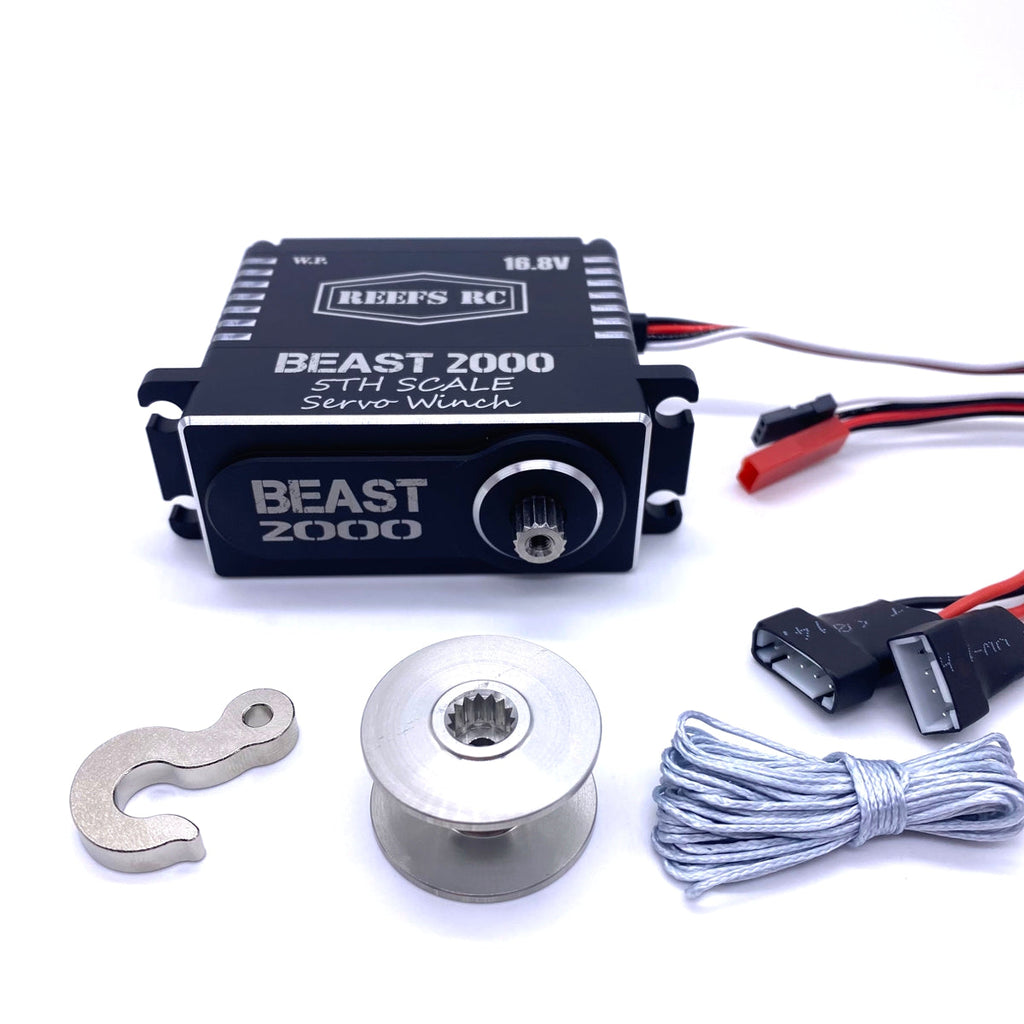

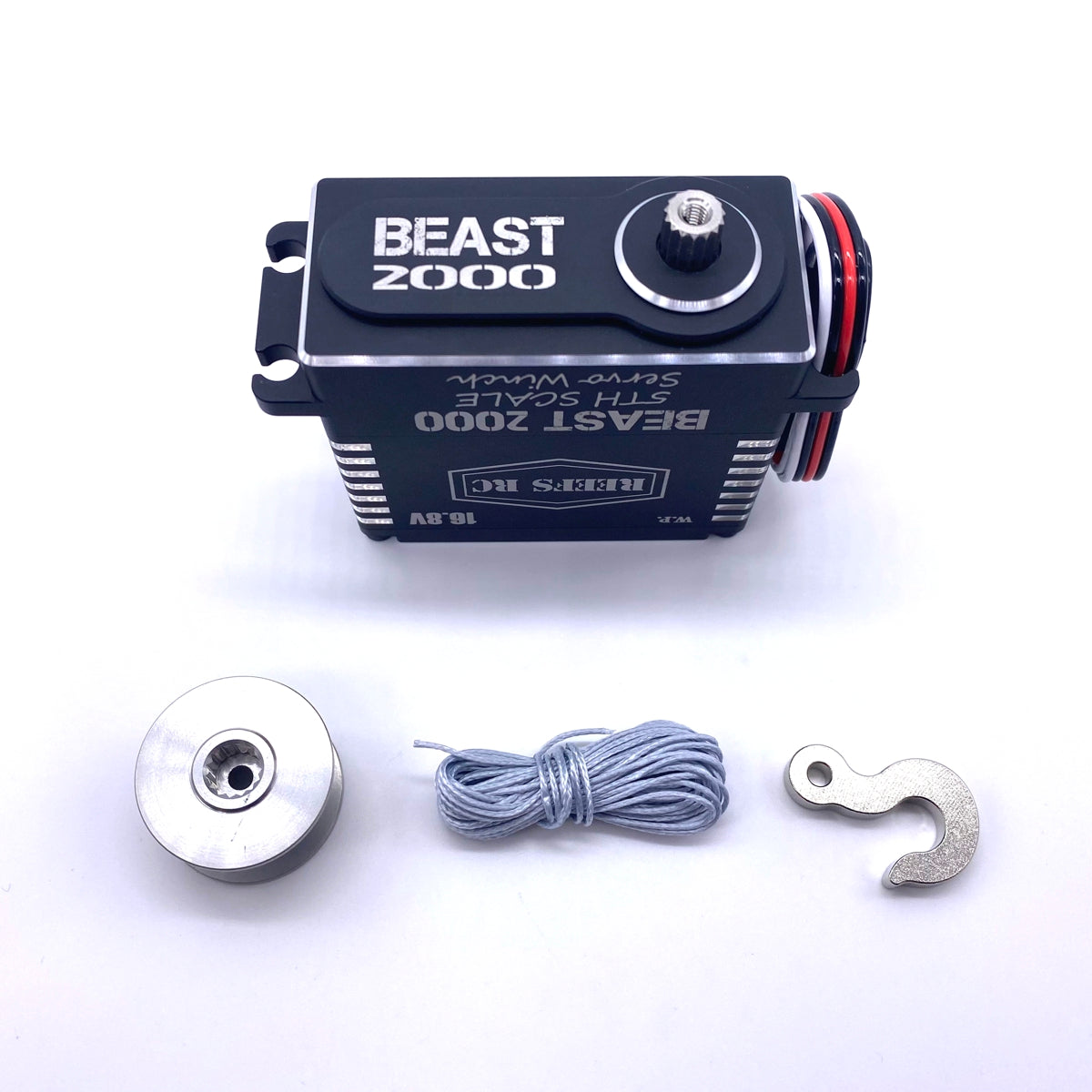

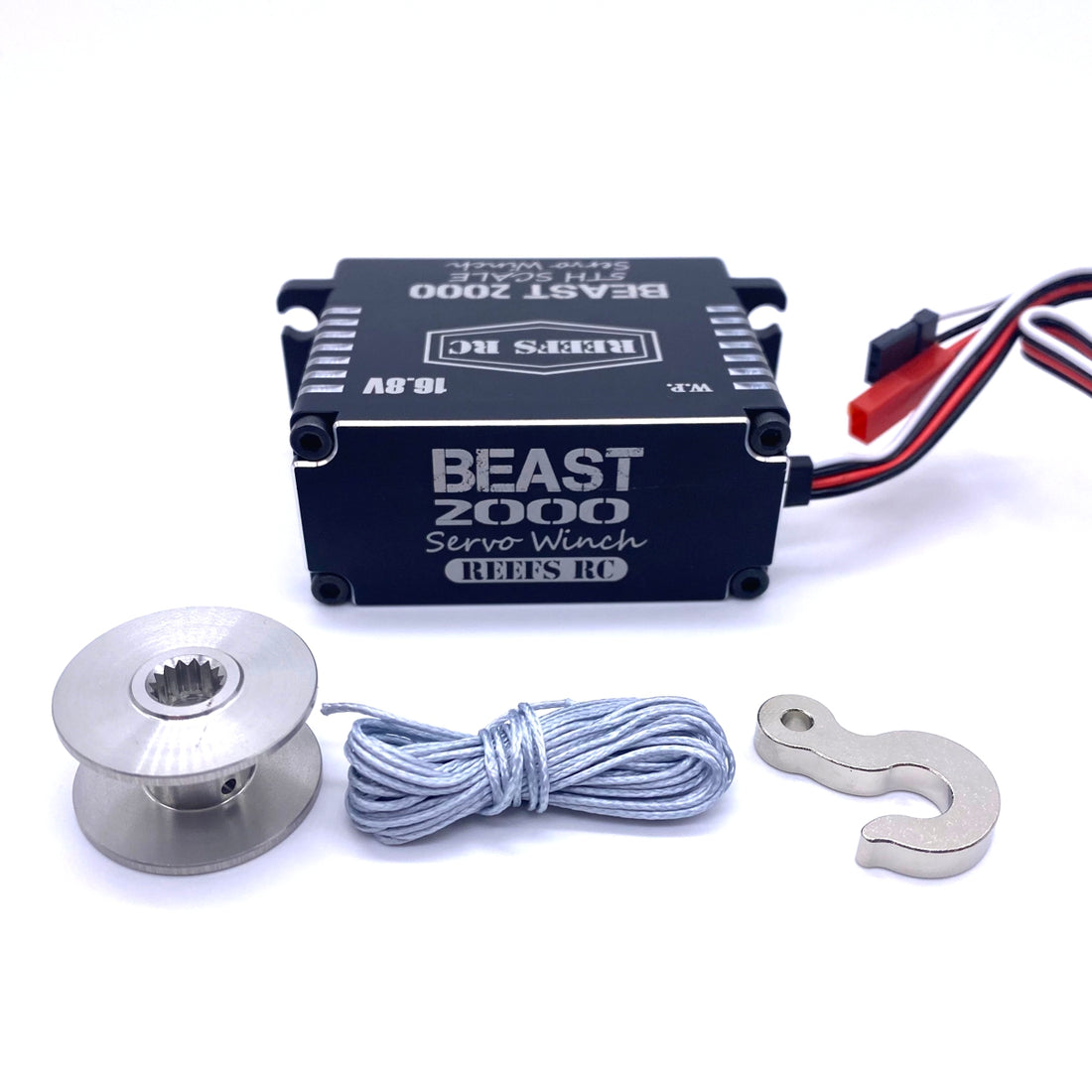

- High Torque High Speed Brushless Servo
- W/: REEFS SPOOL / REEFS 5TH SCALE HOOK / SYN. LINE / 3S & 4S CONNECTOR
-
IP67 Rated WATERPROOF: 7 Point Seals
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- Voltage 7.4V - 16.8V
- Mechanical Angle: No Limit
- Internal: Steel Gears / All CNC Aluminum Casing
- Bearing Type: 5 Ball Bearings /
- Weight: 10oz / 285g / Wires: 22AWG
- Dimension: 2.59 x 1.18 x 2.32 (LWH)
- Torque: 1000oz (72kg)@ 10v/ 1250oz (90kg)@11.1v/ 1450oz (104.4kg)@12v / 2000 (144kg)@ 16.8v
- Speed: .11sec @10v/.105sec @11.1v/.10sec @12v/ .09sec @ 14.4v / .08sec @ 16v
- Spline: 15T
- Dead Band Width: 2uSec
UnloadCurrent
950mA@10.0V
1000mA@11.1V
1060mA@12.0V
1200mA@14.4V
1300mA@16.0V
LoadingCurrent
7700mA@10.0V
8300mA@11.1V
9200mA@12.0V
10600mA@14.4V
11000mA@16.0V
Item# REEFS117
