Tekin - RSXpro ESC - 5.5 Gen4 Sensored BL Combo Motor System

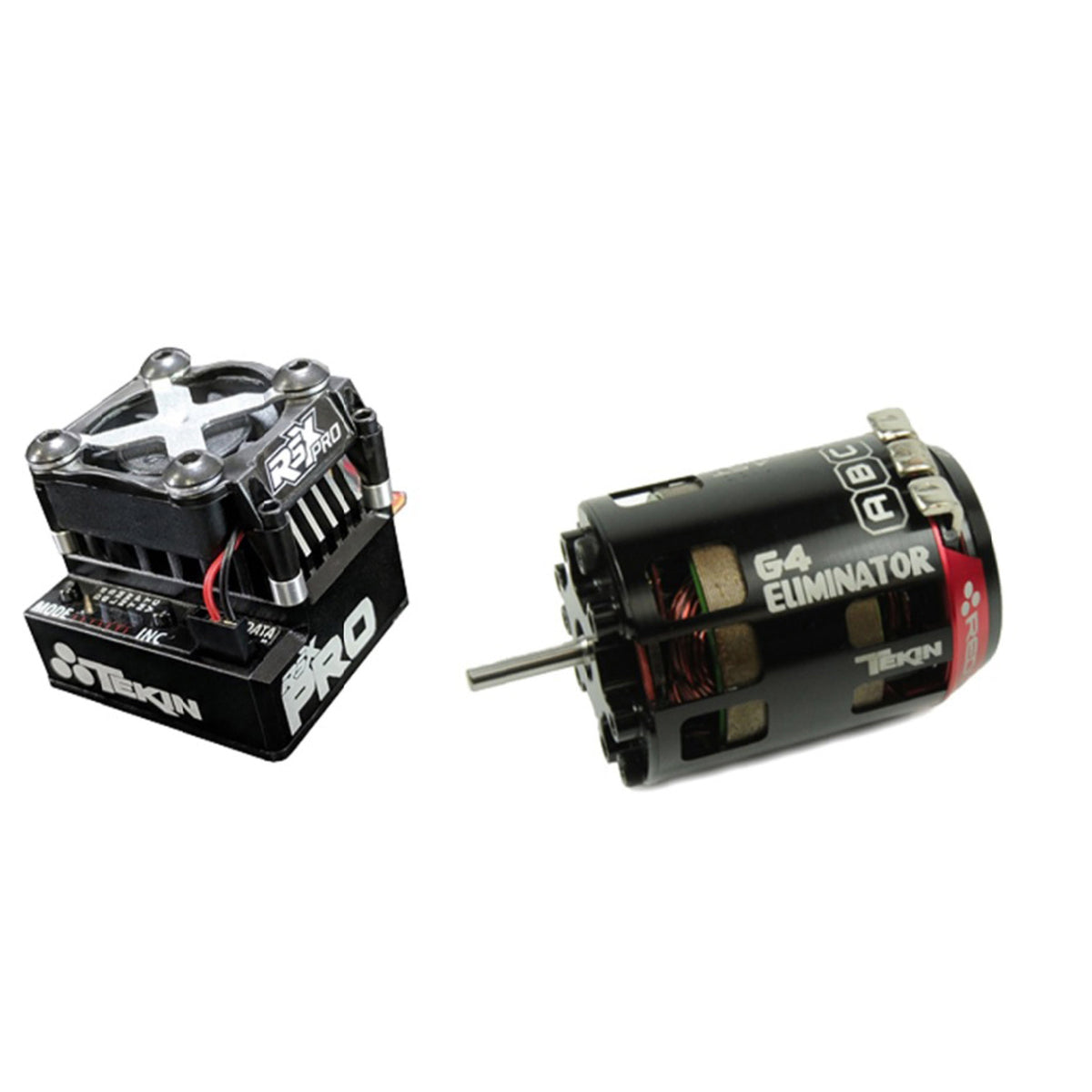

This system combines the Tekin RSX PRO electronic speed control with a GEN4 5.5T sensored brushless motor for modified R/C racing.
Battery compatibility: The included 5.5T motor is rated for 1S–2S LiPo/LiHV (4.2–8.7V). Do not use a 3S battery with this motor. The ESC specifications below describe the ESC separately.
The RSX PRO is Tekin's premiere modified racing Electronic Speed Control. Using only the best available components and materials, this ESC is performance defined. Bred for 1:10th scale modified competition, the RSX PRO gives you maximum power with precise control and reliability. With a highly efficient aluminum heat sink housing and an entire array of adjustable features, you have the ability to fine-tune the RSX PRO's massive power for the win.
Included with the RSX PRO is a detachable fan shroud system for maximum cooling in extreme racing conditions. Data Logging, a High Voltage HD Internal BEC and optional 3rd Channel Drag Brake Adjustment come standard as well as access to Team Driver setups. Take your racing program to the next level with the Tekin RSX PRO.
Specs:
Controls: Forward/Brake/Reverse
Input Voltage: 2S-3S LiPo / 4-12S NiMH-NiCD
Motor Limit Brushless Mode: 2S Drag Racing - 3.5T 2-pole 36mm Can
2S Track Racing - 3.5T 2-pole 36mm Can
Motor Limit Brushed Mode: 2S - 6 Turn 36mm Can
3S - 12 Turn 36mm Can
Max Current: 210amps per phase*
HV Adjustable BEC: 6.0v / 7.4v @ 5.5amps
Dimensions: 1.21 x 1.43 x .82" / 31.2 x 37.2 x 21mm
Weight: 1.4oz / 40g
*per FET manufacturer specs
OFF ROAD
1:10 2WD Buggy
1:10 2WD Truck
1:10 2WD Short Course
1:10 4WD Buggy
ON ROAD
1:12 2WD Pan Car
1:10 2WD Pan Car
1:10 World GT
1:10 2WD Formula 1
1:10 4WD Touring Car
OVAL
1:10 2WD
1:10 SK Car
1:10 Stock Car
1:10 Winged Sprint
Features:
Bluetooth Wireless Mobile and USB PC Tuning with the HotWire 3.0 Billet 6061-T6 Aluminum Heat Sink Housing NEW FET Package
NEW HD Easy Solder Posts
Optional Shroud and High RPM Cooling Fan 3rd Channel Input for On-The-Fly Drag Brake Adjustments <<setup>>
ROAR Approved Blinky Drive Mode QuickTune™ One Touch Programming Adjustable Torque Control * Adjustable Throttle and Brake Frequencies *
HD High Voltage Programmable BEC * HotWire™ Programming Port *
On-the-fly Drag Brake Adjustment Data Logging Capability * Sensor Checker On-Board Temperature Indicator
ESC Self Diagnostics with Error Codes Fully Proportional Forward/Brake/Reverse
Brushless and Brushed Motor Drive
Sensored or Sensorless Operation
LiPo Safe with Custom Voltage Cutoffs
Sensor Plug for Precise Commutation
HDAC: High Density Copper PCB's Ultra-smooth and Precise Throttle and Braking Control
* requires HotWire™ sold separately.
ON BOARD QuickTune™ PROGRAMMABLE FEATURES DB - Drag Brake (13 steps)
BS - Brake Strength (13 steps)
LM - Torque Limiter (7 steps)
NW - Neutral Width (13 steps)
TP - Timing Profiles 5 Preset - 2 Custom*
MT - Motor Type
Brushless Modes - FWD Only / FWD-REV / FWD-REV Delay / FWD-REV Delay REV Motor Direction
Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay
VC - Voltage Cutoff : 2S, 3S, Custom*
* requires HotWire™ sold separately.
Connect to Android devices through USB connection with the HotWire 2.0 or take advantage of the HotWire 3.0 Bluetooth LE technology to wirelessly adjust your settings!
Mobile tuning access gives you the freedom to hit the track, road or trails and take your HotWire with you. Install multiple HotWires in multiple vehicles and connect them all through the HotWire App for easy access anytime, anywhere.
MOBILE REQUIREMENTS
Bluetooth
- Android 4.3 & UP (device must have BLE)
- iOS 8 & UP (iPhone 4S and iPad2 or newer)
USB
